Ultra Series 23mm Pin Piston Set By JE - 83.5mm +1.00mm Oversized Bore - 9.6: 1 CR - Stock Stroke - 92.8mm - VW/Audi 2.0T TSI

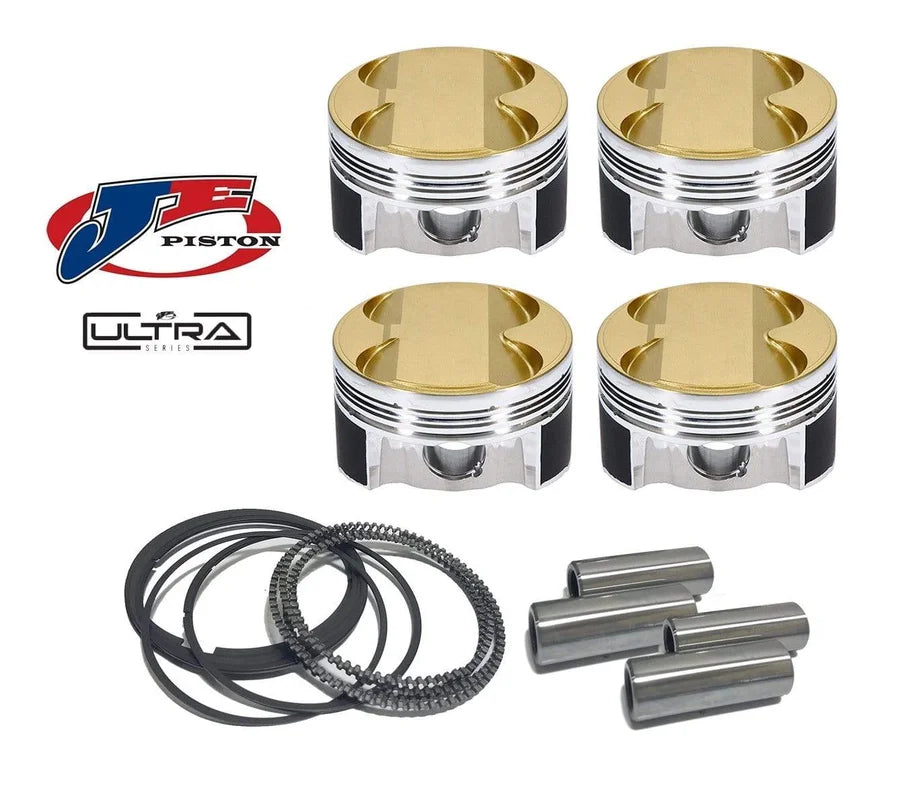

Description NOTE: Image shown not actual parts. JE’s Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included. Bore (in) 3.287 Bore (mm) 83.5 Top Compression Ring Thickness 0.0400 Second Compression Ring Thickness 0.0480 Oil Ring Thickness 0.111 Forging Type FSR Volume (cc) -7.00 Series JE Ultra Series Piston Head Type Inv Dome/Dish Pin Diameter (IN) 0.905.

Compression Height 1.155 Make AUDI / VOLKSWAGEN Wrist Pin Style – floating or press fit Floating Wall Type CHAMFERED Wall Thickness (IN) 0.210 Ringset Part Number JG1004-3287 Ring Brand ProSeal Ringset Included No Retainer Thickness 0.073 Retainer Lock Style Wire Lock Retainer Lock Part Number 905-073-MW Retainer Diameter (IN) 0.905 Replacement Single Piston 367865S Piston Pin Inside Diameter 0.485 Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY Piston Material 2618 Piston Pin Length (IN) 2.250 Piston Avg Wt 292 Pin Offset No Pin Brand JE Pistons Pin Part Number 905-2250-21-93C Pin Included Yes Pin Diameter (mm) 23.00.

Oil Rail Support Included No Deck Clearance -0.010 Brand JE Pistons OE Part #’s 06H-107-065-DM / 06H107065 DM / 06H 107 065 DM / 06H107065DM 06H-107-065-CC / 06H107065 CC / 06H 107 065 CC / 06H107065CC 06H-107-065-CK / 06H107065 CK / 06H 107 065 CK / 06H107065CK 06H-107-065-CL / 06H107065 CL / 06H 107 065 CL / 06H107065CL 06H-107-065-CM / 06H107065 CM / 06H 107 065 CM / 06H107065CM 06H-107-065-DD / 06H107065 DD / 06H 107 065 DD / 06H107065DD 06H-107-065-DG / 06H107065 DG / 06H 107 065 DG / 06H107065DG 06H-107-065-DJ / 06H107065 DJ / 06H 107 065 DJ / 06H107065DJ 6H1-070-65D-M / 6H107065D M / 6H1 070 65D M / 6H107065DM.
